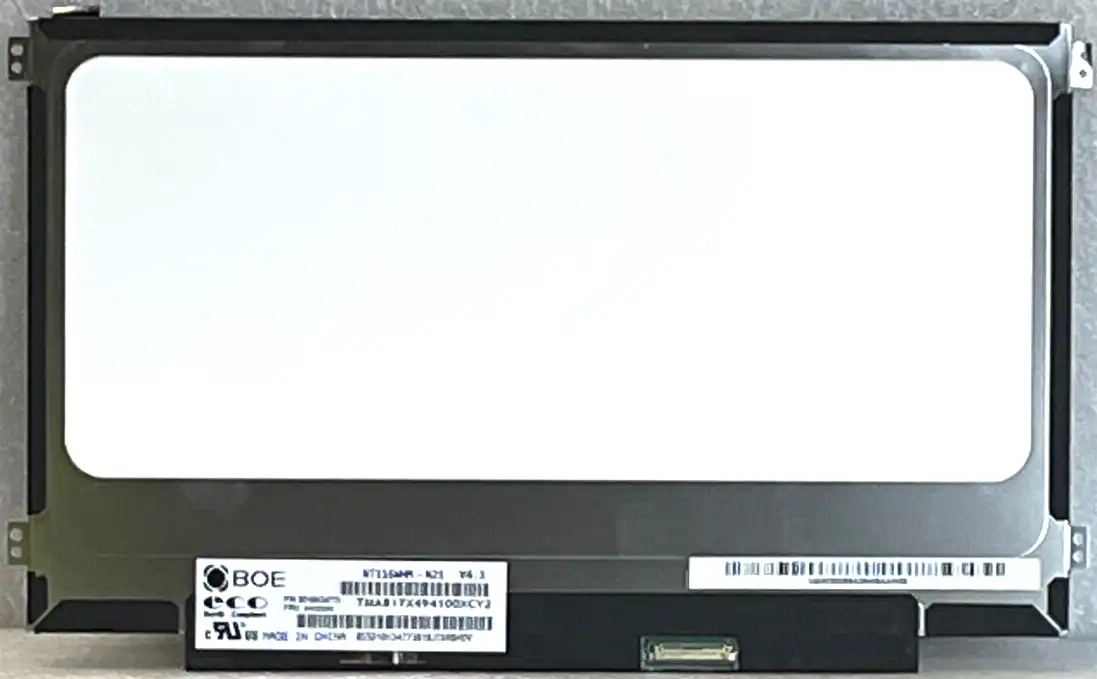

11.6" BOE laptop screen panel NT116WHM-N21 matte 30-pin KL.1160E.003 brand new
Specifications
Specifications

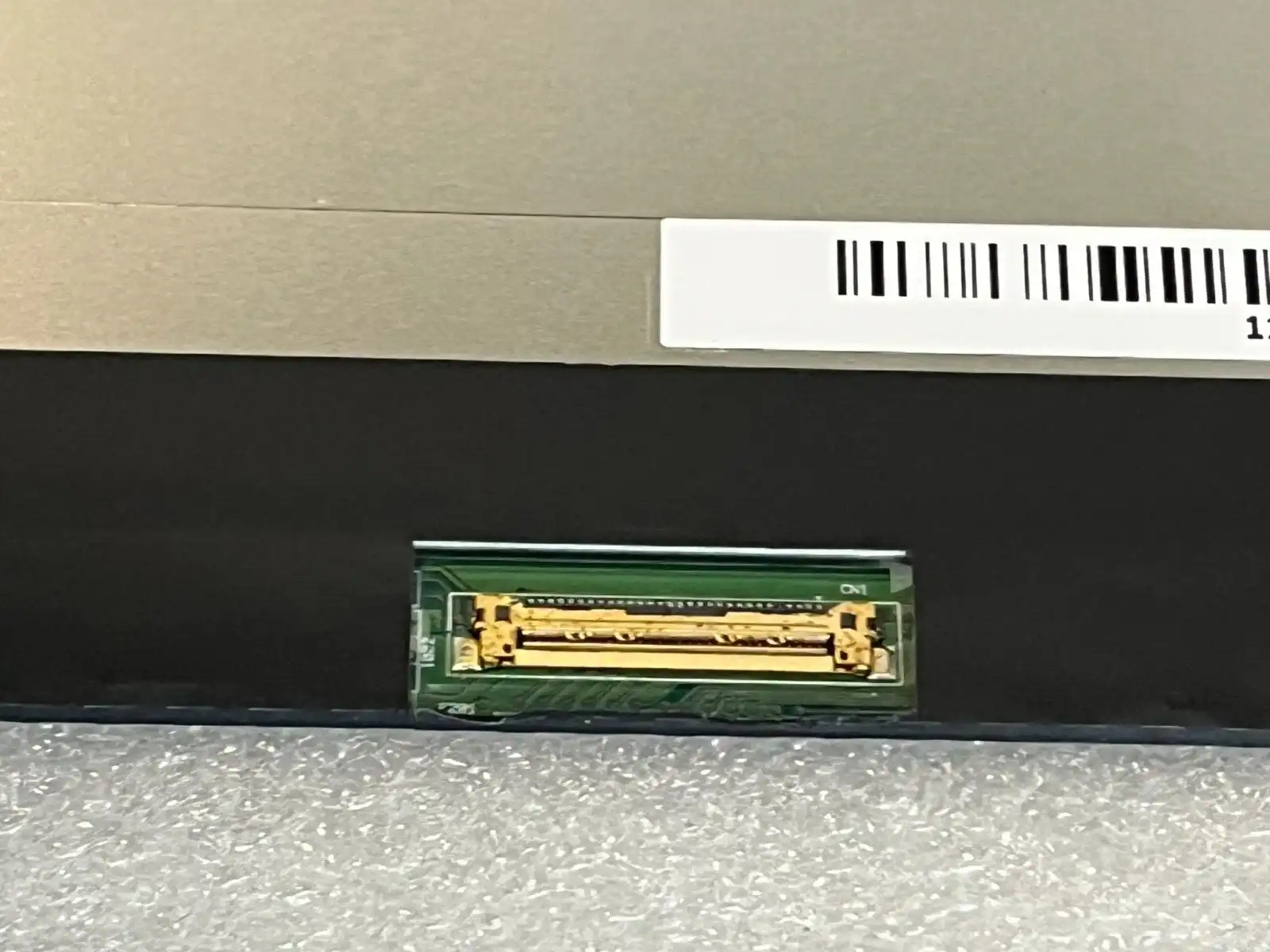

| Connector | 30-pin |
| Display Technology | LED LCD |
| Custom Bundle | No |
| Max. Resolution | 1366x768 |
| Screen Finish | Matte |
| Screen Size | 11.6 in |
| MPN | KL.1160E.003 |
| Brand | BOE |
| Type | TFT-LCD |

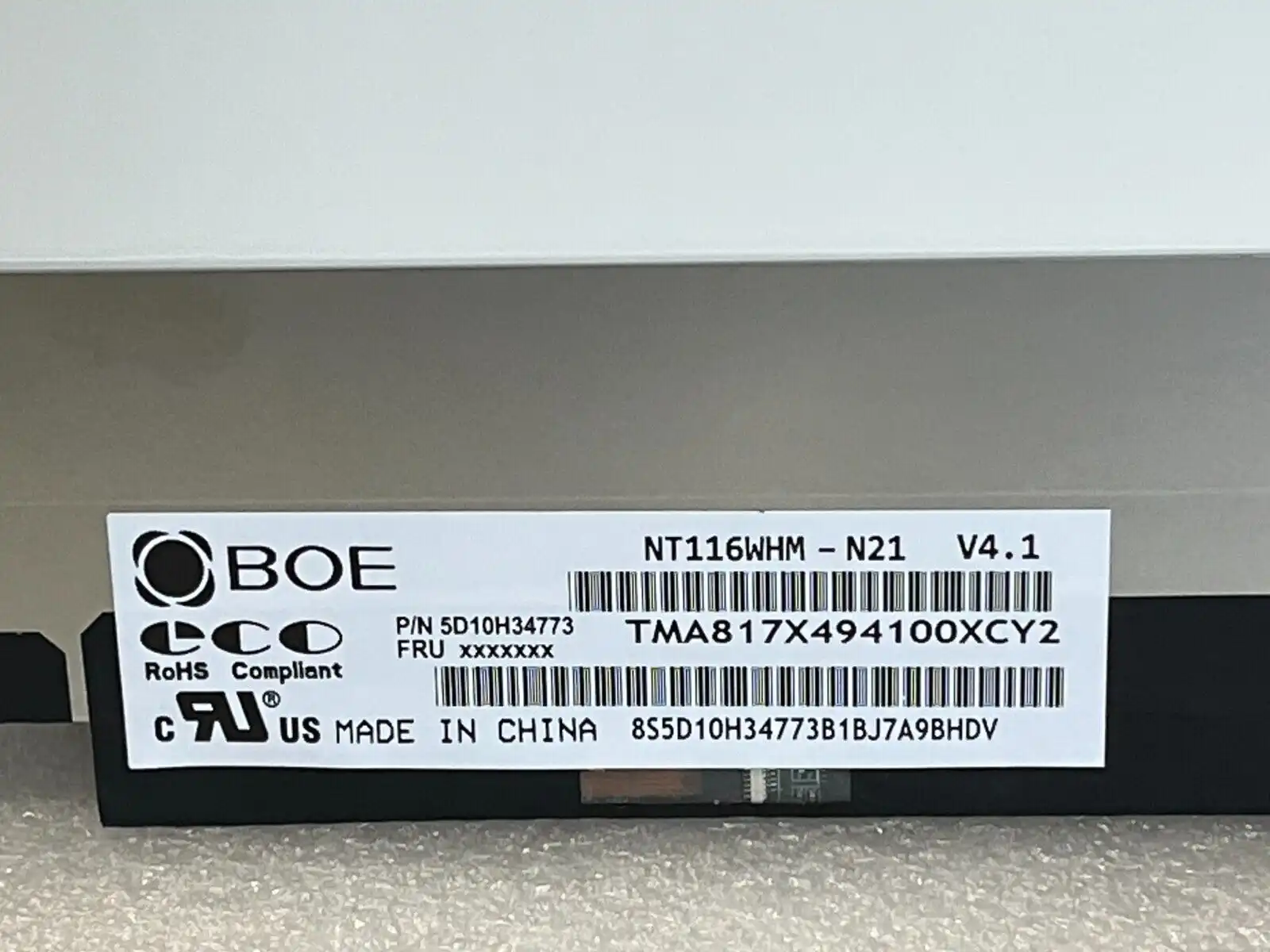

| Model | NT116WHM-N21 V4.1 |
| Compatible Brand | Universal |
| Modified Item | No |
| Maximum Resolution | 1366 x 768 |
| Aspect Ratio | 16:9 |
| Non-Domestic Product | No |
Product Description
-
- Brand
- BOE
- Model P/N
- NT116WHM-N21
- Diagonal Size
- 11.6" Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 1366(RGB)×768, WXGA 135PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 256.125(W)×144(H) mm
- Bezel Opening
- -
Outline Size 278(W)×168(H) ×3(D) mm Surface Antiglare, Hard coating (7H) Brightness 220 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 45/45/20/40 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response Time 12 (Typ.)(Tr+Td) Display Colors 262K 45% NTSC Lamp Type 8S3P WLED , 15K hours , With LED Driver Frequency 60Hz Touch Screen Without Shape Style Slim (PCBA Flat, T≤3.2mm) Application Signal Interface eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector Input Voltage 3.3V (Typ.) Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
