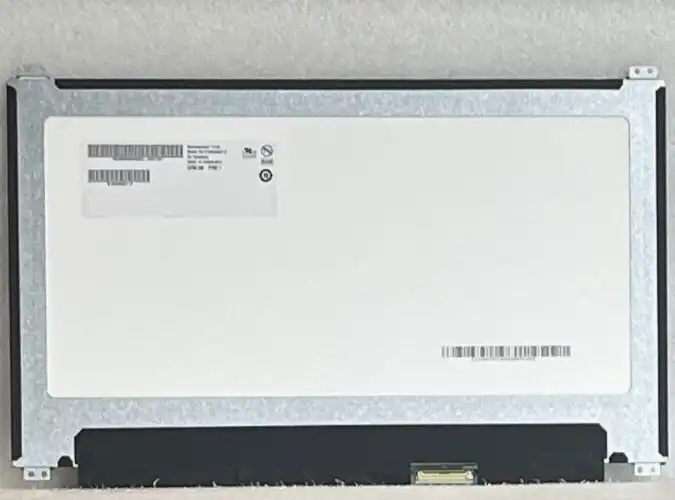

13.3" AUO B133HAK01.0 IPS Full HD Screen Matte Touch for Acer Aspire S5-371T
Specifications
Specifications

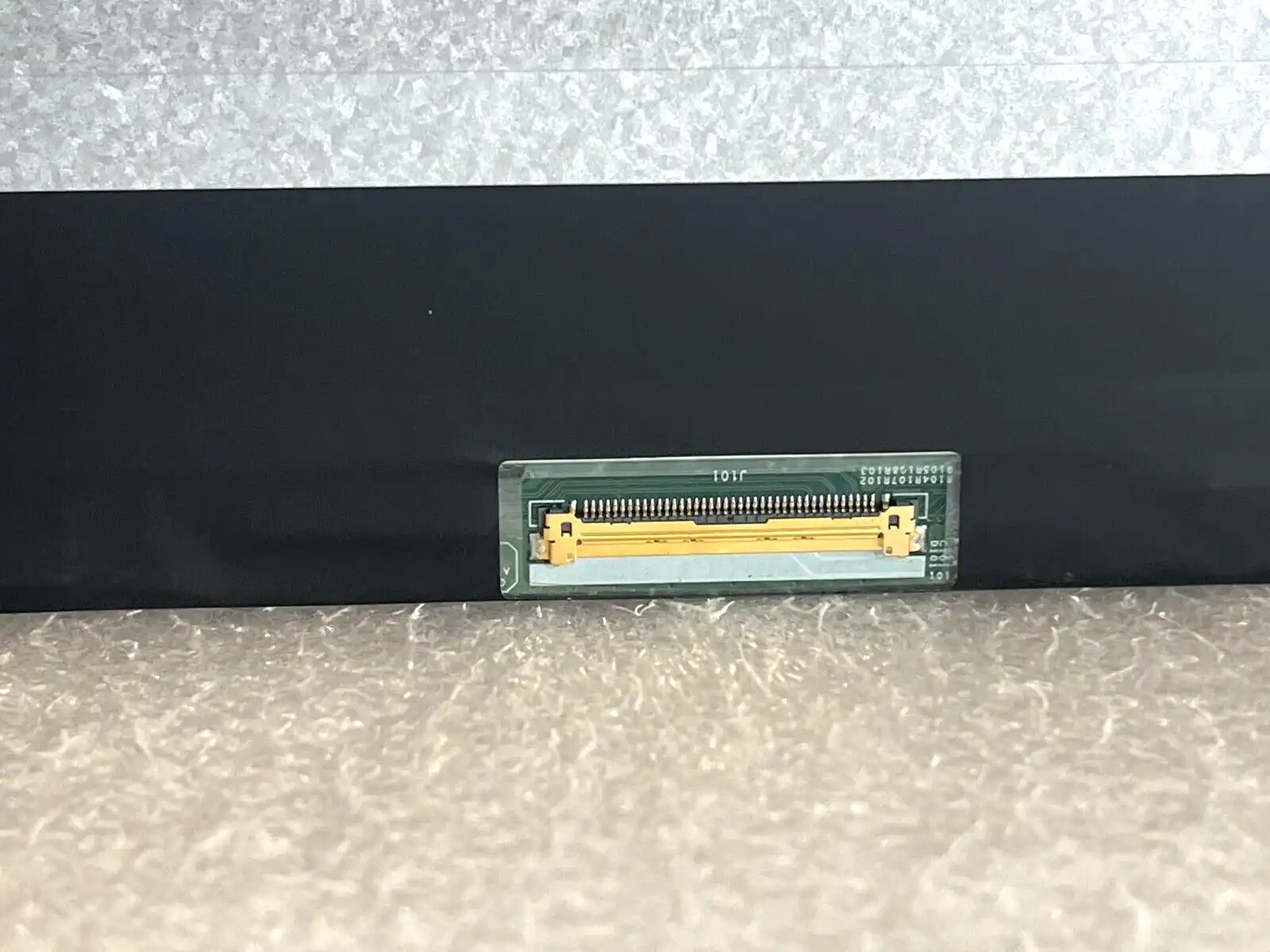

| Connector | 40-pin |
| Display Technology | LED LCD |
| Custom Bundle | No |
| Screen Finish | Matte |
| Screen Size | 13.3 in |
| Type | IPS |
| Maximum Resolution | 1920 x 1080 |
| Compatible Brand | Universal |
| Modified Item | No |
| Compatible Product Line | Acer Aspire S5-371T |
| Brand | AUO |

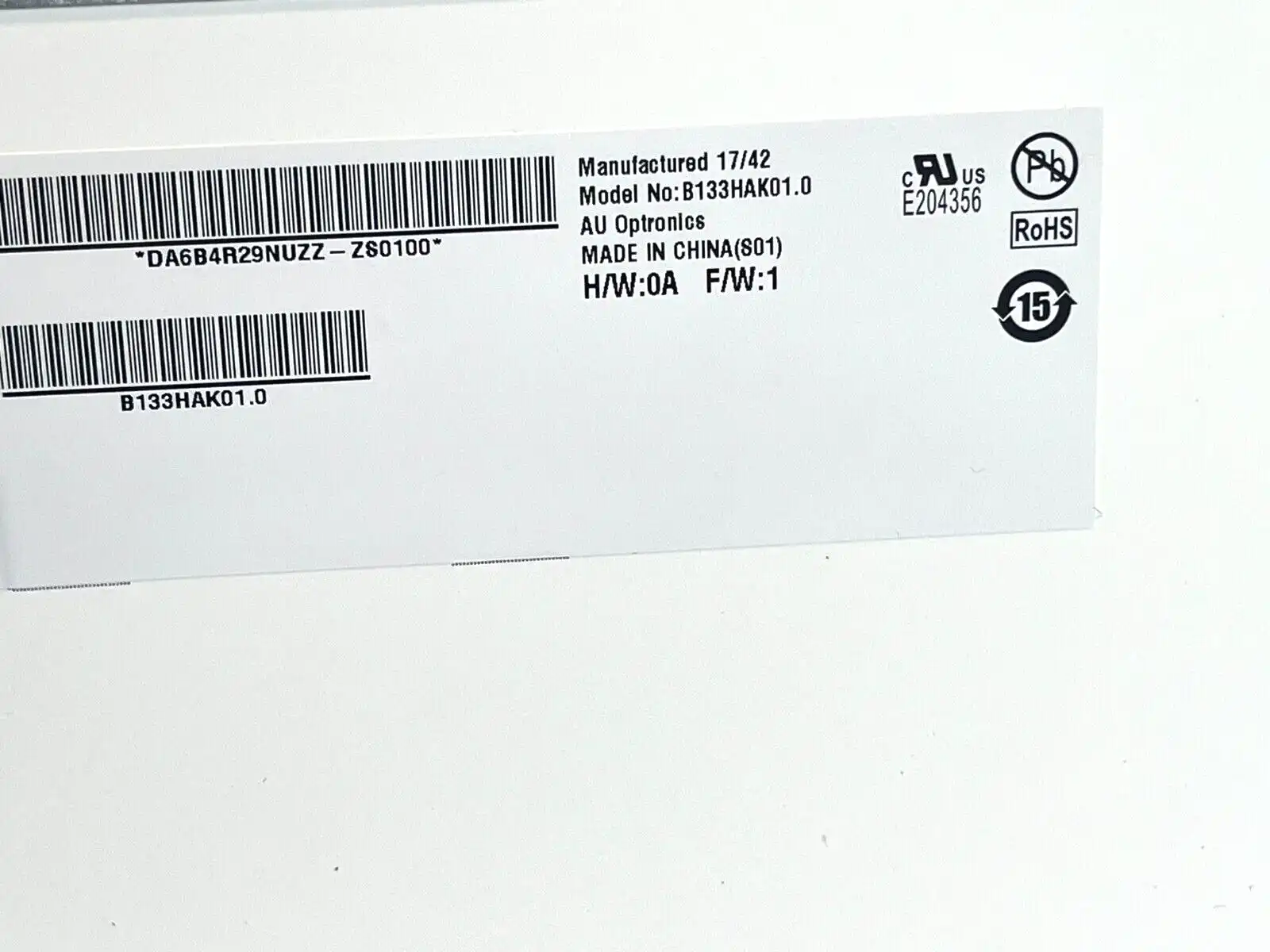

| MPN | B133HAK01.0, KL.13305.028 |
| Aspect Ratio | 16:9 |
| Non-Domestic Product | No |
Product Description
-
- Brand
- AUO
- Model P/N
- B133HAK01.0
- Diagonal Size
- 13.3"
- Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 1920(RGB)×1080, FHD 166PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 293.472(W)×165.078(H) mm
- Bezel Opening
- -
- Outline(mm)305.35 × 194.35 × 3.2 (H×V×D)
- TreatmentHard coating (3H)
- Luminance300 cd/m² (Typ.)
- Contrast Ratio800 : 1 (Typ.) (TM)
- Viewing Angle85/85/85/85 (Typ.)(CR≥10)
- Response27 (Typ.)(Tr+Td) ms
- Good View atSymmetry
- Work ModeAHVA, Normally Black, Transmissive
- Color Depth262K 72% NTSC
- BacklightWLED , 15K hours , With LED Driver
- Outline ShapeSlim (PCBA Flat, T≤3.2mm)
- Refresh Rate60Hz
- TouchscreenOn-Cell Touch, I²C/USB
- Signal Type
- eDP (2 Lanes) , eDP1.2 , 40 pins Connector
- Voltage Supply
- 3.3V (Typ.)
- Max. Ratings
- Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °
