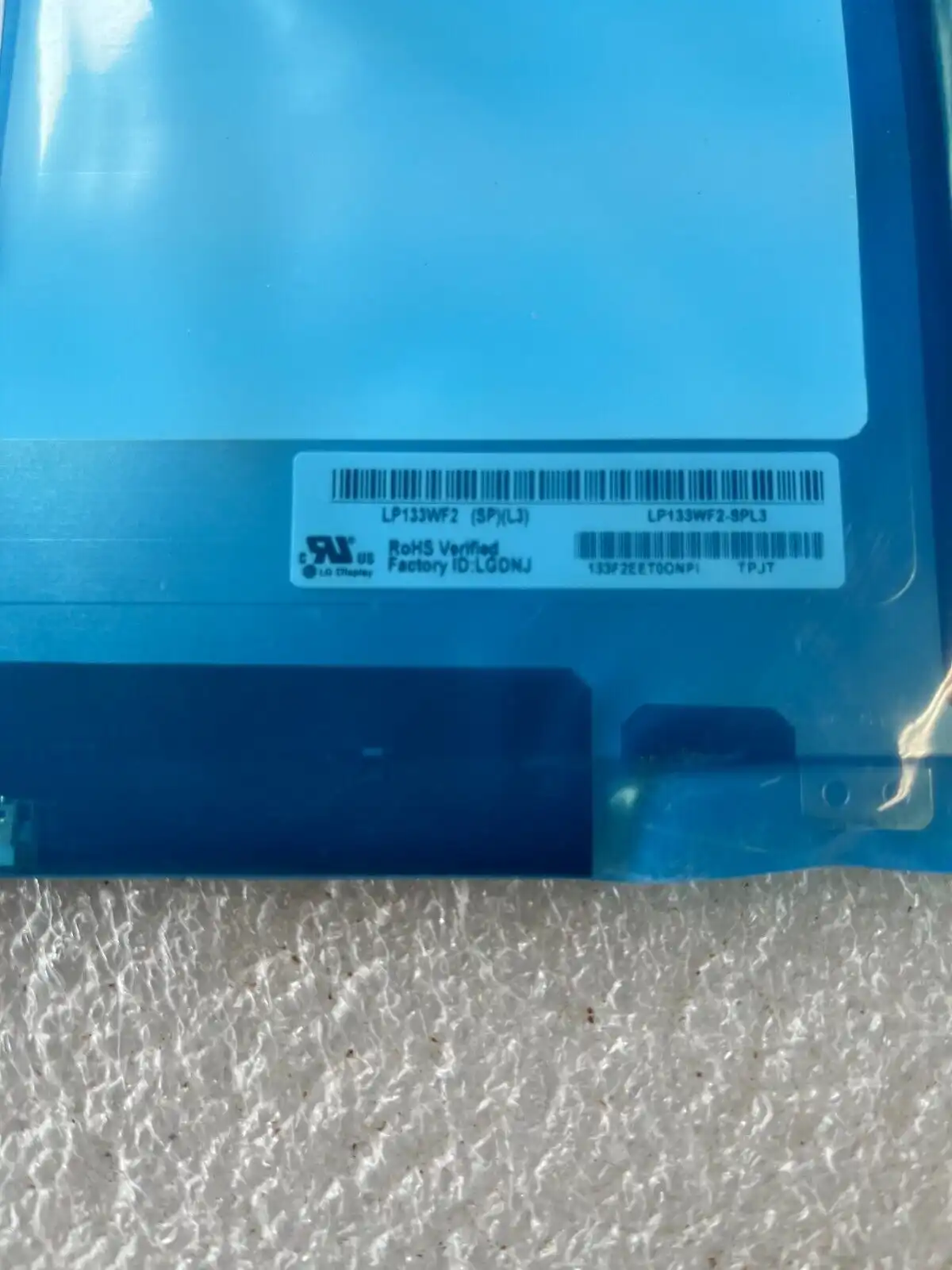

LG Display LP133WF2-SPL3 Mechanical Features
| Panel Size : |
13.3 inch |
| Pixel Features : |
Resolution |
Pixel Arrangement |
Dot Pitch (W×H) |
Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD |
RGB Vertical Stripe |
0.05095×0.15285 mm |
0.15285×0.15285 mm [166PPI] |
| Mechanical Size : |
Active Area (W×H) |
Bezel Area (W×H) |
Outline Dimension (W×H) |
Outline Depth |
| 293.472×165.078 mm |
- |
- |
- |
| Outline Features : |
Form Style |
Aspect Ratio |
Orientation |
Shape Style |
| Flat Rectangle |
16:9 (W : H) |
Landscape type |
Slim (PCBA Flat, T≤3.2mm) |
| Other Features : |
Panel Cover |
Weight |
Surface |
| - |
- |
Hard coating (3H) |
- Disclaimer : The above parameters are not from the datasheet, only as a reference, please use with caution!
LG Display LP133WF2-SPL3 Optical Features
| Basic Information : |
Brightness |
Operating Mode |
Contrast Ratio |
| - |
IPS, Normally Black, Transmissive |
- |
| Viewing Angle(L/R/U/D) |
Viewing Direction |
Response Speed |
| 85/85/85/85 (Typ.)(CR≥10) |
Symmetry |
25 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : |
Color Temperature |
Color Amount |
White color Chromaticity |
| 6485K |
262K (6-bit) |
X:0.313; Y:0.329 |
LG Display LP133WF2-SPL3 Electronics Features
| Frame Rate : |
60Hz > |
| Reverse Scan : |
No |
LG Display LP133WF2-SPL3 Interface Features
| Signal Electrical : |
Current Input |
Voltage Input |
Consumption |
| - |
3.3V (Typ.) |
- |
| Interface Features : |
Position |
Type |
Interface |
| - |
Connector |
eDP (2 Lanes) |
| Signal Interface : |
Brand |
Model |
Amount |
Pin Pitch |
Pins |
| I-PEX |
20455-030E-12 |
1 pcs |
0.5 mm |
30 pins |
|
- Disclaimer : The above parameters are not from the datasheet, only as a reference, please use with caution!
LG Display LP133WF2-SPL3 Backlight Features
| Backlight Features: |
Type |
Position |
Shape |
Life(Hours) |
Replacement |
| WLED |
Edge light type |
- |
- |
15K(Min.) |
- |
| Interface Features : |
Position |
Type |
WLED Driver |
| - |
Included in signal interface |
With LED Driver |
|
