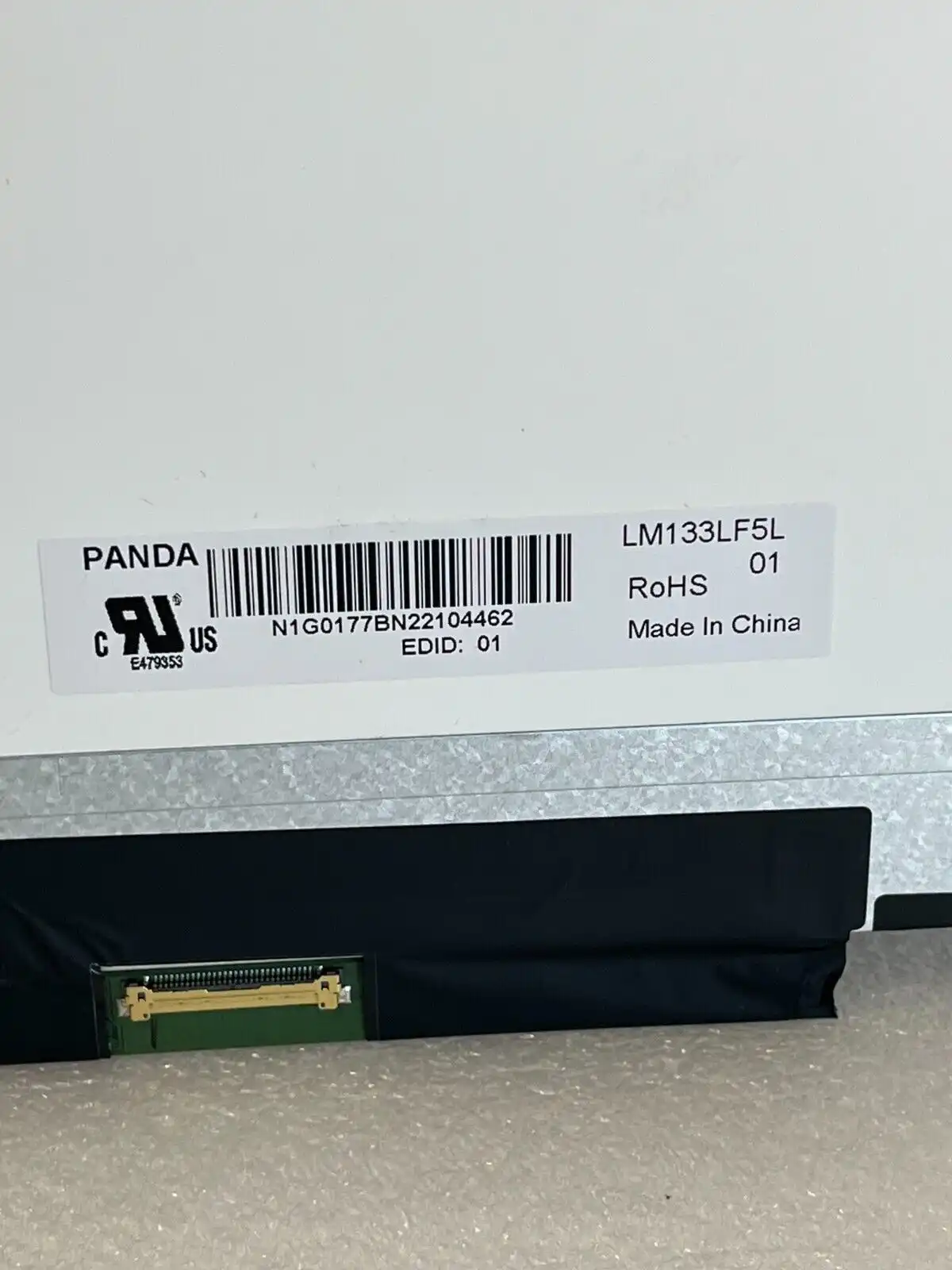

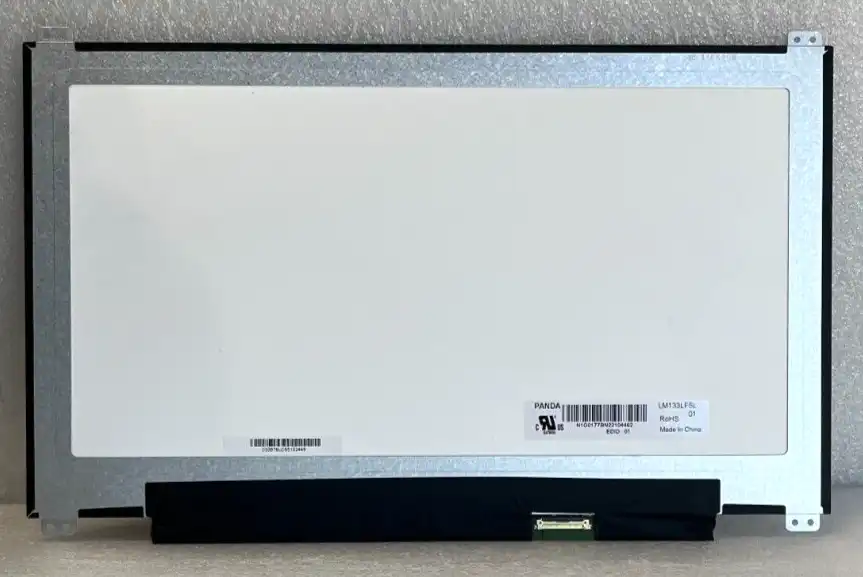

13.3" PANDA LM133LF5L01 NCP0020 FHD Laptop Screen Matte 30-pin KL.13303.003
Specifications
Specifications
| Connector | 30-pin |
| Display Technology | LED LCD |
| Custom Bundle | No |
| Screen Finish | Matt |
| Screen Size | 13.3 in |
| Type | LCD Screen Panel, LCD Screen Panel |
| Maximum Resolution | 1920 x 1080 |
| Model | LM133LF5L01 |
| Compatible Brand | For Acer |
| Non-Domestic Product | No |
| Modified Item | No |
| Brand | PANDA |
| Compatible Model | Acer Aspire V3-372 |
| MPN | KL.13303.003 |
| Aspect Ratio | 16:9 |
Product Description
PANDA LM133LF5L01 Application Details
| Basic Detail : | ManufacturerModel Name LM133LF5L01 Panel Type Oxide TFT-LCD , LCM Another Name NCP0020 Panel Size 13.3 inch |
|---|
PANDA LM133LF5L01 Mechanical Details
| Pixel Features : | Number of Pixel 1920(RGB)×1080, FHD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.051×0.153 mm Pixel Pitch(W×H) 0.153×0.153 mm [166PPI] |
|---|---|
| Physical Size : | Active Viewing 293.76(W)×165.24(H) mm Overall Dim. 305.2(W)×193.85(H) mm Bezel Opening - Overall Depth 2.8/3.0 (Typ./Max.) mm |
| Outline Features : | Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style Slim (PCBA Flat, T≤3.2mm) |
| Fixation : | Face mounting holes (8 pcs) on up, down slugs |
| Other Detail : | Mass TBD Surface Antiglare (Haze 24%) |
PANDA LM133LF5L01 Optical Details
| Basic Detail : | Luminance 300 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode FFS, Normally Black, Transmissive |
|---|---|
| Color Performance : | Chromaticity Wx:0.305; Wy:0.324 Support Color 16.7M (8-bit) Color Temperature 6986K White Variation 1.30/1.50 (Typ./Max.)(13 points) |
| 1931 Color Gamut : | NTSC Ratio 71% sRGB 94% coverage Adobe RGB 73% coverage DCI-P3 73% coverage Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
PANDA LM133LF5L01 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
PANDA LM133LF5L01 Interface Detail
| Signal Electrical : | Input Current 180/260mA (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption 0.59W (Typ.) Signal Interface eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) |
|---|---|
| Interface Features : | PositionType Connector |
| Interface Detail : | Brand Model Pitch Pins Amount Pin Assignment I-PEX 20455-030E-76 0.5 mm 30 pins 1 pcs EDP-30P2L-020A |
