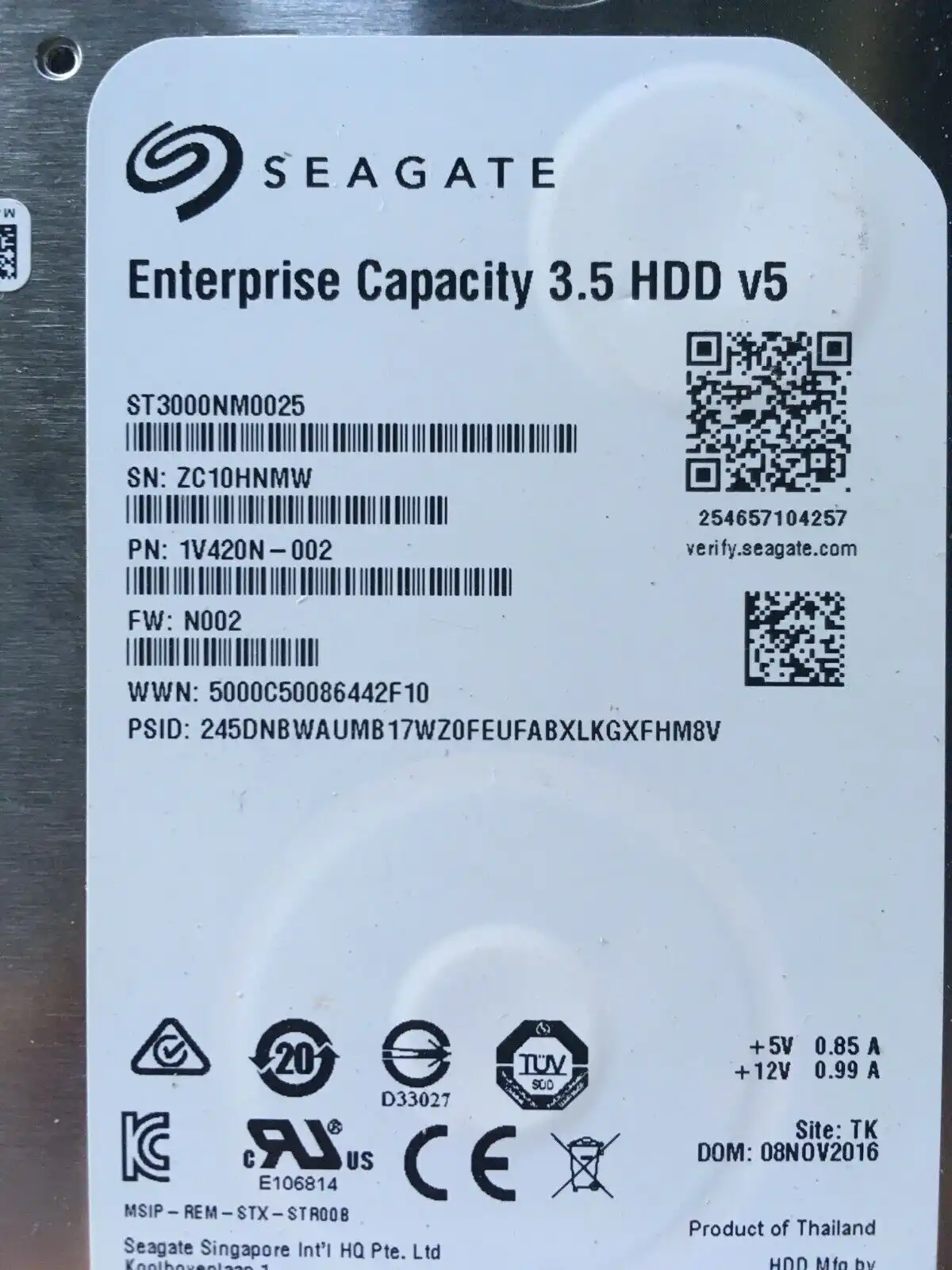

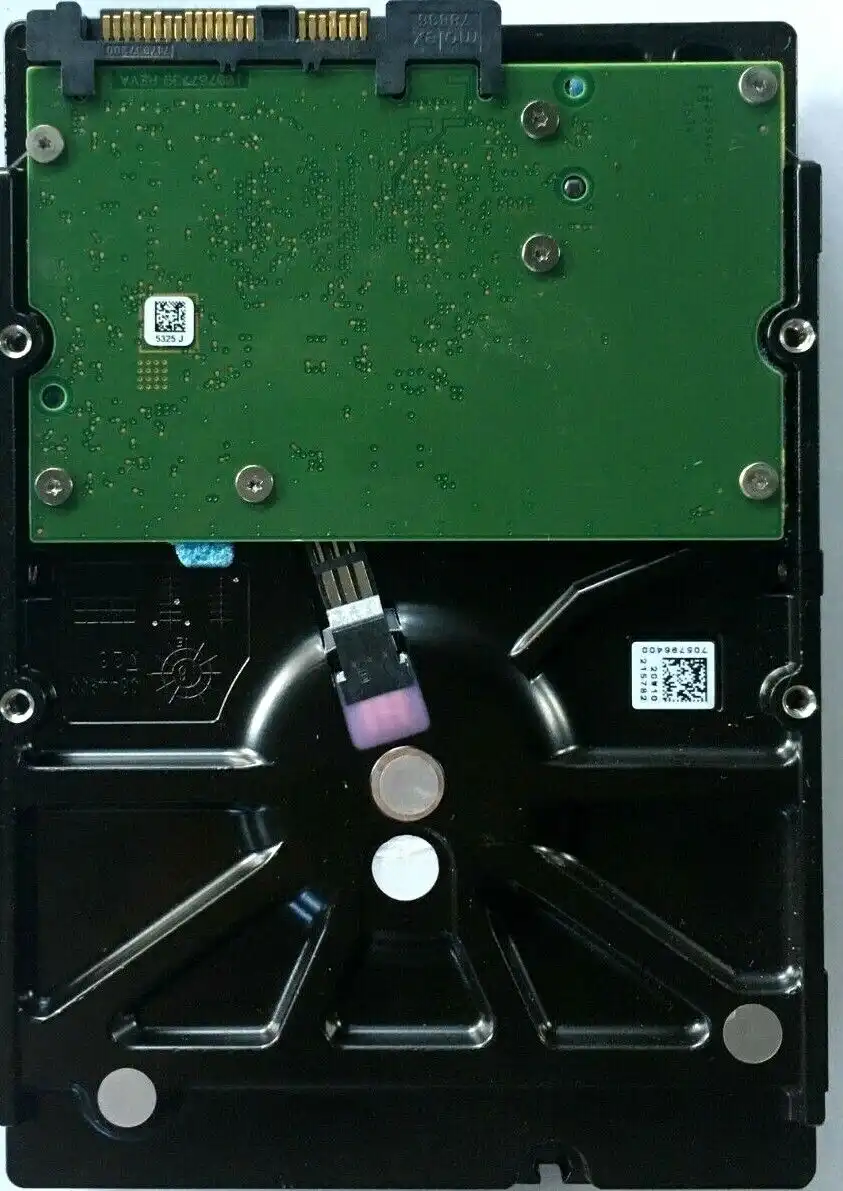

3Tb Seagate ST3000NM0025 7.2k 128Mb 12Gb/s SAS serial attached SCSI
Specifications
Specifications
| Internal/External | Internal |
| Brand | Seagate |
| Type | Internal Desktop Drive |
| Form Factor | 3.5" -Desktop |
| Interface | SAS Serial Attached SCSI |
| Cache | 128 MB |
| Rotation Speed | 7200 RPM |
Product Description
3Tb Seagate ST3000NM0025 7.2k 128Mb 12Gb/s SAS serial attached SCSI
Harddrive is used, tested, working OK, no bad sectors, 30 days warranty back-to-base.
|
Product Specifications
|
|
| Interface | SAS 12 Gb/s |
|
Performance Specifications
|
|
| Rotational Speed | 7,200 RPM (nominal) |
| Cache | 128 MB |
| Transfer Rate, Max Ext (MB/s) | 600 MB/s |
| Sustained Data Rate OD | 215MB/s |
| Average Latency (ms) | 4.16 |
|
Reliability/Data Integrity
|
|
| Nonrecoverable Read Errors per Bits Read | 1 in 1015 |
| Annualized Failure Rate (AFR) | 0.63% |
| Physical Dimensions | |
| English | |
| Height | 1.028 Inches |
| Length | 5.787 Inches |
| Width | 4.00 Inches |
| Weight | 1.444 Lbs |
| Metric | |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.6 mm |
| Weight | 0.635 kg |
| Environmental Specifications | |
| Shock | |
| Operating Shock (Read) | 70/40 (2 ms) |
| Non-operating Shock | 300G (2 ms) |
| Acoustics (belssound power) | |
| Idle Mode | 2.8 |
| Seek Mode 0 | 3.0 |
| Temperature (English) | |
| Operating | 41° F to 131° F |
| Non-operating | -40° F to 158° F |
| Temperature (Metric) | |
| Operating | 5° C to 60° C |
| Non-operating | -40° C to 70° C |
| Electrical Specifications | |
| Current Requirements | |
| Power Dissipation: | |
| Read/Write | 11.27 Watts |
| Idle | 6.73 Watts |
ROHS Compliant
Alternate MPNs: 1V420N-002
Weight: 1.8 lb
